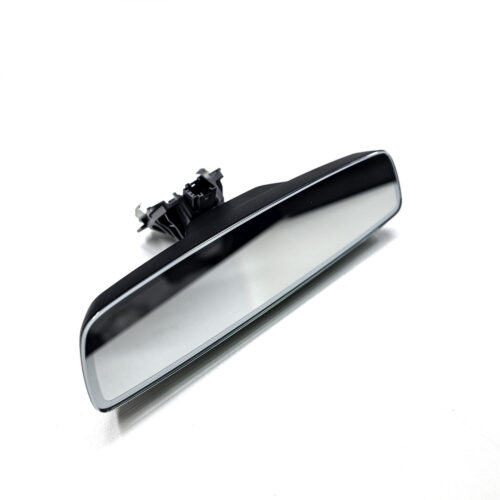

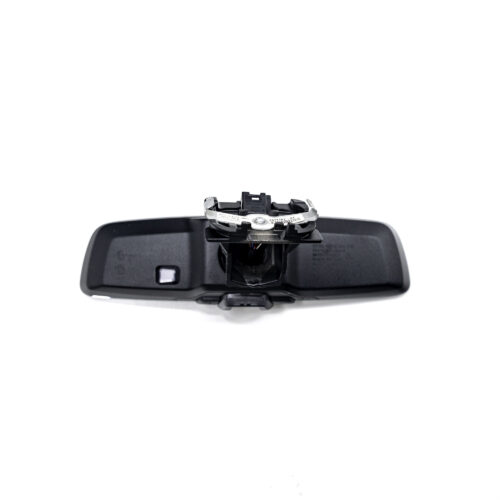

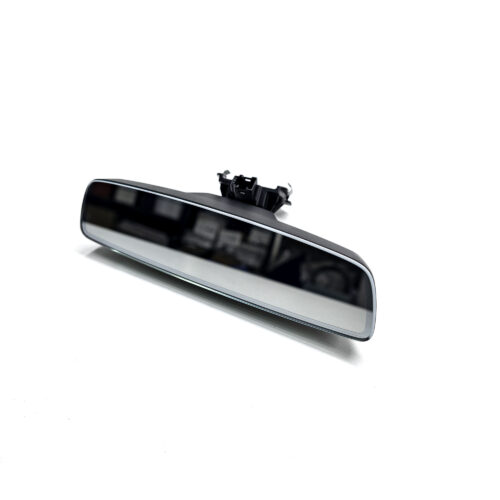

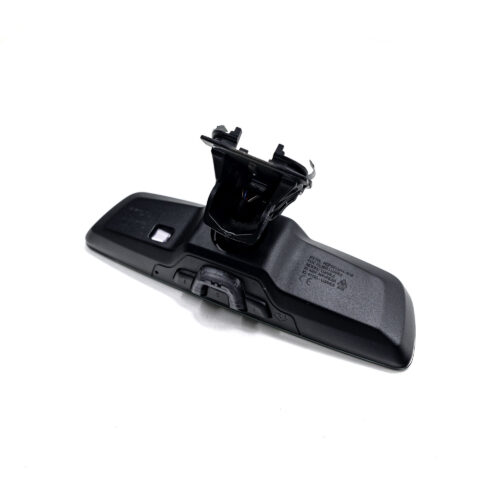

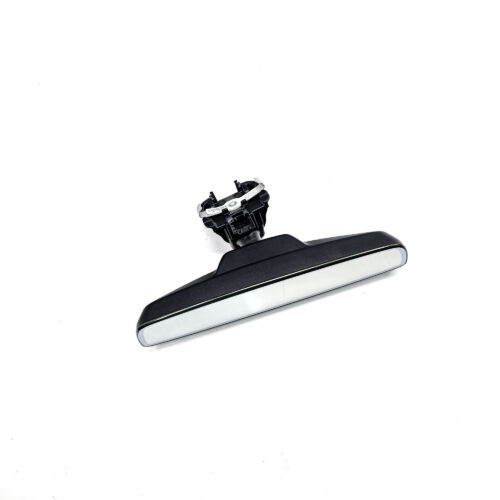

OEM BMW Interior mirror with garage opener 10-POL – 51162471107

The frameless vehicle interior mirror has an integrated universal remote control. It is self-learning and allows the opening and closing of, for example, garage and property doors from the vehicle.

The system is compatible with almost all garage and property doors, replacing up to three separate remote controls. As an additional feature, this interior mirror is automatically dimming. It is also compatible with the anti-theft warning system.

The interior mirror can only be installed in conjunction with one of the following special equipment:

• dimmable interior and exterior mirrors (SA 430)
• dimming interior mirror (SA 431)

For the high-beam assistant option (SA 5AC), the additional installation requirements can be found in the EPC.

• innovative interior mirror in a frameless design
• perfect integration of up to three radio remote controls in the interior mirror
• Simple and fast training of the integrated universal remote control on the garage/property door

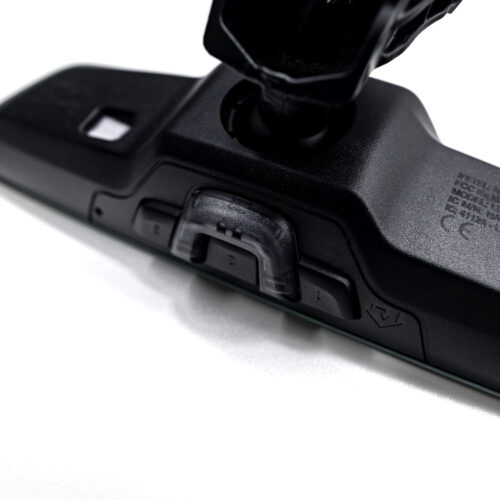

• Convenient operation via the switches on the interior mirror
• Increased transmission range due to stable power supply – no more empty batteries
• Improved anti-theft protection, as the system only works when the ignition is switched on
• automatically dimming (electrochromic mirror)
• individually adjustable mirror head

Material:

• Mirror base: sturdy metal base with black matt finish
• Mirror head: high-quality plastic housing with frameless glass surface

Technical data:

• Transmission frequencies: 434 MHz, 868 MHz
• Dimensions mirror surface: 248 x 65 mm
• Total dimensions: 248 x 112 x 65 mm
• Weight: 518 grams
• Not compatible with US vehicles (due to frequency compatibility)

Please check the compatibility of the garage door.

Execution of the functional test

• Make the vehicle operational.
• First commissioning: Press and hold the two outer buttons on the interior mirror simultaneously for about 10 seconds until the LED on the interior mirror flashes green quickly. All programming of the buttons on the interior mirror will be deleted.
• Press the button to be programmed on the interior mirror. The LED on the interior mirror is slowly flashing orange.
• Hold the handheld transmitter of the system to be operated with a distance of approx. 2.5 to 30 cm to the buttons on the interior mirror. The required distance depends on the handheld transmitter.
• Press and hold the buttons of the desired function on the handheld transmitter.
  • LED green = system compatible
  • LED continues to flash orange = system not compatible
